Plaster Spray Machine

A plaster spray machine is a piece of construction equipment that automates the application of plaster, mortar, or other sprayable materials onto walls and ceilings. It significantly increases efficiency, reduces labor costs, and ensures a more uniform, high-quality finish compared to manual methods.

How It Works

The process typically involves a few key steps:

Material Preparation: The plaster, which is often a pre-mixed, polymer-modified material (either dry mix or wet), is prepared to the correct consistency.

Loading: The prepared mixture is loaded into the machine's hopper or a separate mixing unit.

Pumping & Pressurization: A pump system (commonly a screw pump or piston pump) draws the material from the hopper and pressurizes it.

Application: The high-pressure material travels through a specialized, high-pressure hose to a spray gun. An air compressor connected to the spray gun then atomizes the material and propels it onto the surface with strong force.

Finishing: After application, the operator uses a float, trowel, or a smoothing blade to level the surface and achieve the desired finish.

Types of Machines

Plaster spray machines come in various types tailored to different needs:

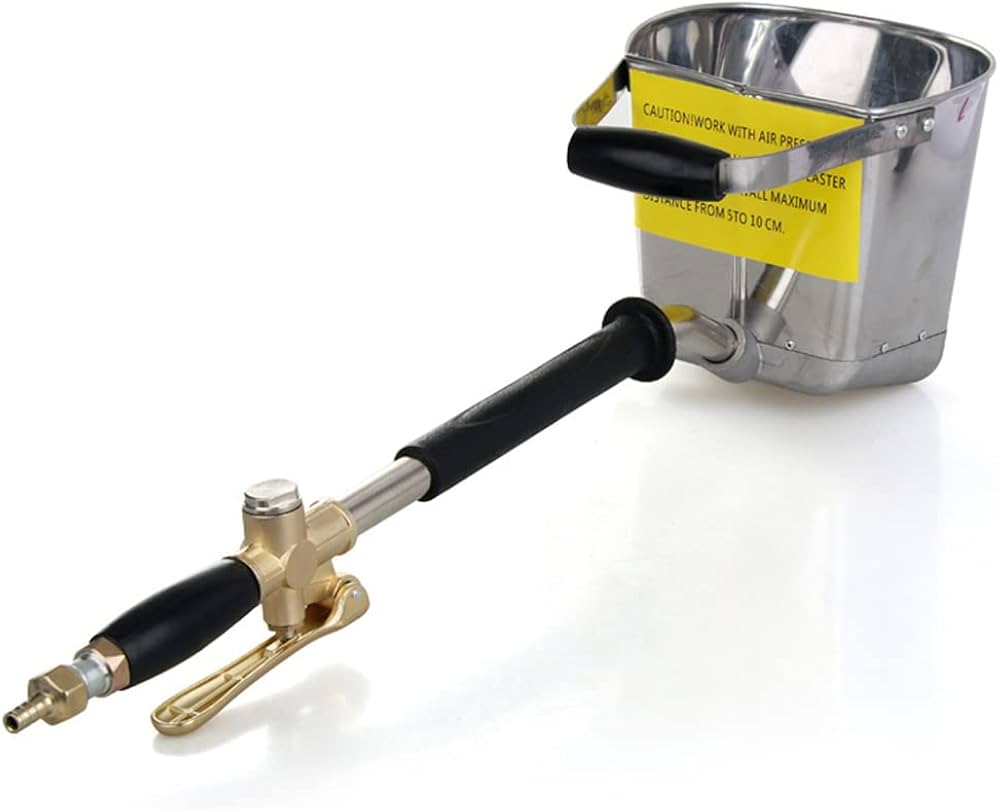

Pneumatic Sprayers (Hopper Guns): These are often handheld and use an air compressor to spray material from a bucket-like hopper. They are simple, portable, and suitable for smaller jobs and textured finishes.

Mixing Pumps (Plastering Stations): Larger, more automated machines that continuously mix dry bagged material with a precise amount of water before pumping and spraying. These are ideal for large-scale commercial projects.

Conveying Pumps: These machines require the plaster to be pre-mixed (either on-site or delivered ready-mix) and then pump it to the spray gun.

Key Benefits

Speed and Efficiency: Application is significantly faster (3 to 10 times) than manual plastering, allowing for faster project completion.

Reduced Labor: The machine handles the heavy lifting and mixing, reducing the need for extensive manual labor and minimizing physical strain on workers.

Consistent Finish: The machine ensures a uniform material-to-water ratio and even application, resulting in a smooth, high-quality, and crack-free finish.

Less Waste: The controlled application method and ability to reuse excess pre-mixed material minimizes on-site waste.

Versatility: Most machines can handle various materials, including cement-based, gypsum-based, and lime-based plasters, as well as specialized coatings like fireproofing or self-leveling floor screeds.
